| product name: | Aluminum Heatsink Extrusion Profiles | Alloy: | 6063,6061,6005 |
|---|---|---|---|
| Material: | Aluminum | Suface Treatment: | Mill Finished,Anodized ,Electrophoretic coated,Powder spray coated |
| Deep process: | Milling, Drilling, Bending,Cutting | Temper: | T4, T5, T6 ,T66 |
| برجسته: | ,,aluminium extrusion heat sink profiles |
||
Descrition:
|
Item |

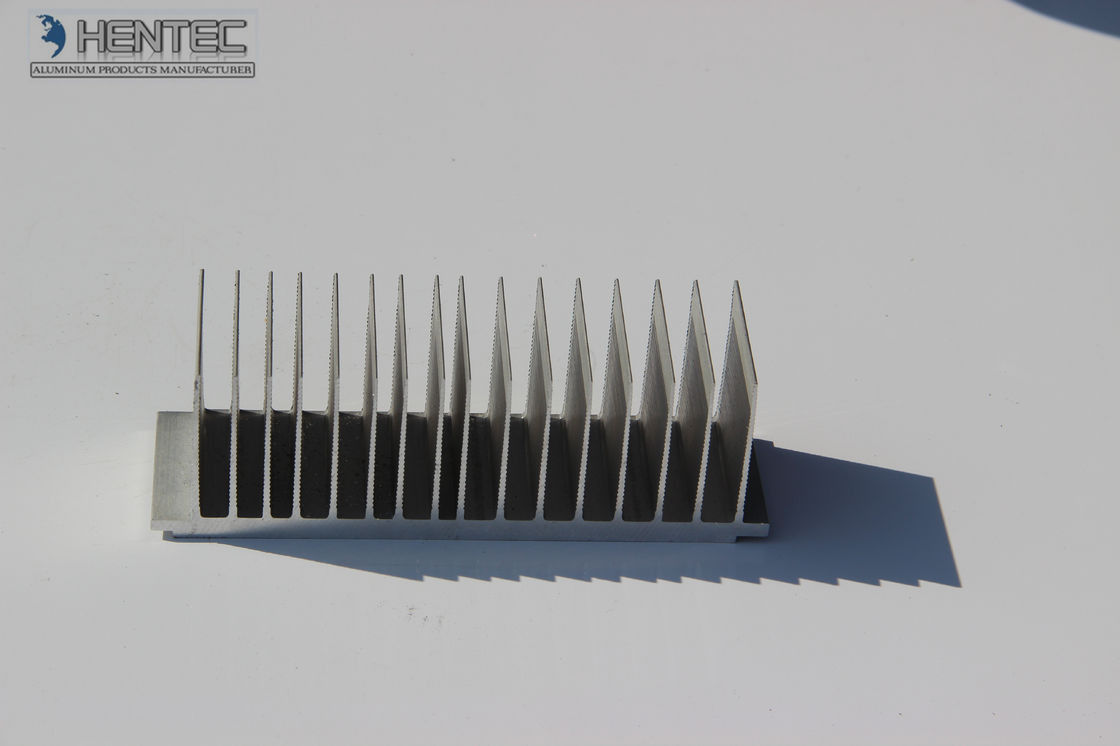

6061 / 6063 Aluminum Heat Sink , With CNC Machining , Bending , Polishing |
|
Surface Treatment |
Polishing, Powder coating, Spraying, Anodising, Zinc Plating and etc |
|
Tolerance |
+/-0.02~0.05mm |
|
Equipments |
a) CNC Machining Center b) Extrusion Mchine g)NC Bending Machine h) Anodized /Powder painted line |
|
Preferred Formats |
JPEG, PDF,CAD,IGS,STP |
|
Preferred Industries |
a) Communication Equipments b) Medical Equipments c) House Hardware d) Toy Air soft e) Mechanical Equipments f) Other customized Parts |
Applications:
Aluminum heat sink is widely used on Machines , cars , lighter ...
Specifications:
1. Primary Technical Data
1)Chemical composition
|
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Impurity |
Al |
|
6063 |
0.2-0.6 |
0.35 |
0.1 |
0.1 |
0.45-0.9 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
|
6061 |
0.4-0.8 |
0.7 |
0.15-0.4 |
0.15 |
0.8-1.2 |
0.04-0.35 |
0.25 |
0.15 |
0.15 |
Rest |
|
6060 |
0.3-0.6 |
0.1-0.3 |
0.1 |
0.1 |
0.35-0.6 |
- |
0.15 |
0.1 |
0.15 |
Rest |
|
6005 |
0.6-0.9 |
0.35 |
0.1 |
0.1 |
0.40-0.6 |
0.1 |
0.1 |
0.1 |
0.15 |
Rest |
2) Mechanical property
|
Alloy |
Temper |
Tensile strength |
Yield strength |
Elongation |
|
6063 |
T5 |
≥ 160Mpa |
≥ 110Mpa |
≥ 8% |
|
T6 |
≥ 205Mpa |
≥ 180Mpa |
≥ 8% |
|
|
6061 |
T6 |
≥ 265Mpa |
≥ 245Mpa |
≥ 8% |
Competitive Advantage:
· Very cost efficient
· Short lead-time
· very complex cross-section within 1 step
· Very smooth surface texture without post-processing
· Can be used to create large components
· Can be welded/soldered
